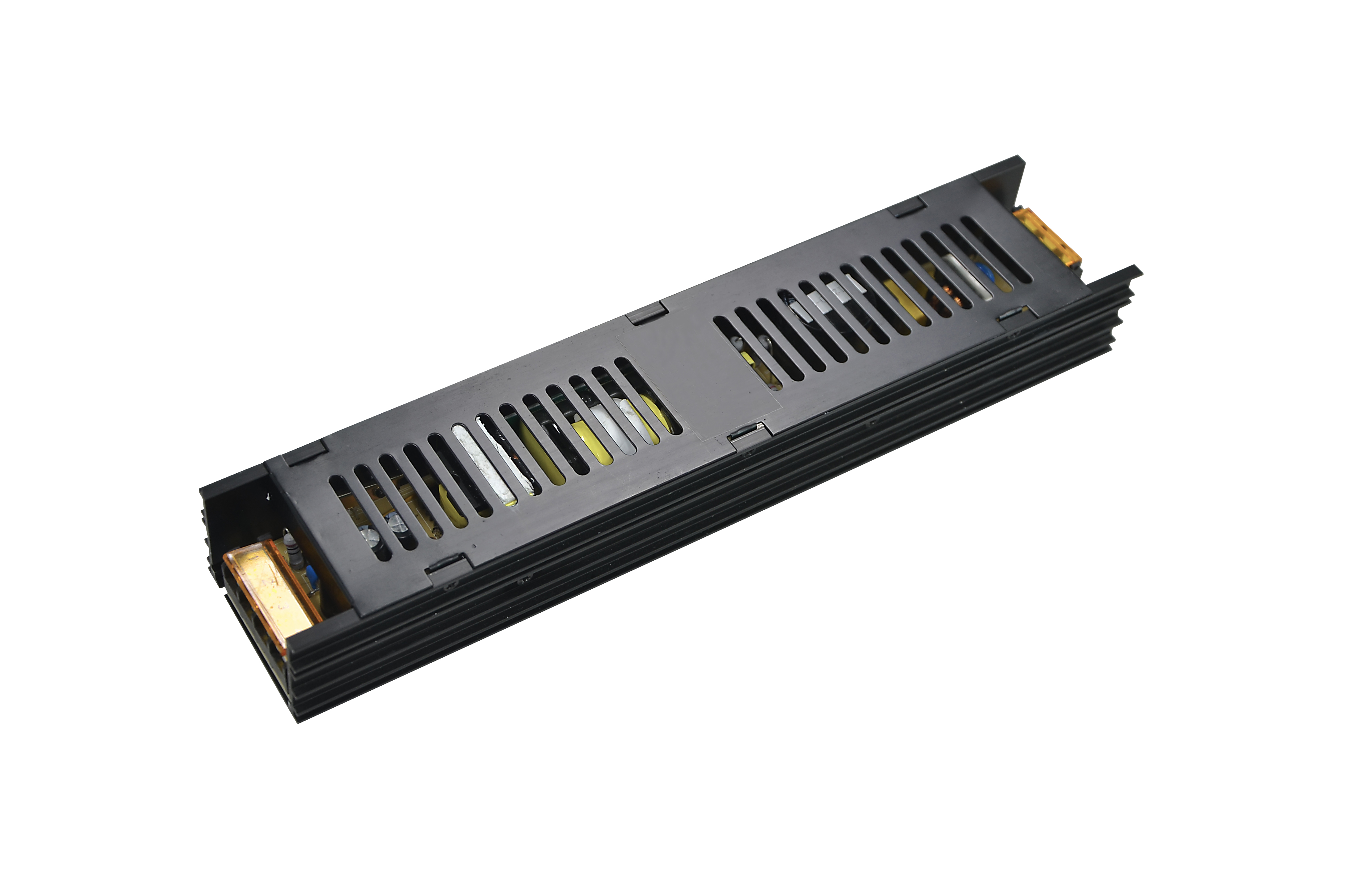

HVS-N-24200K18 LED power supply constant voltage high efficiency driver

The HVS-N-2400K18 is a high-performance, single-output 24V DC switching power supply delivering up to 200W of continuous power (24V @ 8.3A). Engineered for stable and clean DC output, it maintains low ripple & noise (≤300mVp-p) and provides fast setup/rise/hold-up time (≤2 seconds), making it ideal for demanding applications such as LED lighting systems, industrial automation, control equipment, and electronic devices.

Key Features:

• Input Characteristics — Supports 200–240VAC input range (50/60Hz) with active power factor correction (PFC > 0.95) and high efficiency of ≥88% at 230VAC. Maximum input current is ≤1.9A, with cold-start inrush current limited to 90A@230VAC.
• Output Performance — Fixed 24V DC rated output with tight regulation and low ripple & noise (≤300mVp-p), ensuring clean power delivery for sensitive loads.
• Protection Mechanisms — Built-in overload protection (105–180% load range — output voltage folds back to reduce loading), auto-recovery hiccup-mode short circuit protection, and automatic over-temperature protection (output reduces when preset temperature is reached).
• Safety & Reliability — High isolation strength with 3kVAC input-to-output and 1.5kVAC input-to-FG; leakage current ≤1mA@240VAC; insulation resistance ≥100MΩ@500VDC. Operating temperature range of -20°C to +50°C (with appropriate derating) and 20–90% RH humidity tolerance.
• Construction — Durable metal housing with IP20 rating, compact dimensions of 240 × 68.6 × 46 mm, suitable for installation in control cabinets or equipment enclosures.

This model offers excellent cost-to-performance value with built-in PFC, robust protections, and reliable operation in industrial environments. Note: Input and output cables are not included (/), allowing flexible installation according to application requirements.

Ideal for powering 24V LED strips, signage, industrial controllers, automation systems, and other constant-voltage DC loads requiring dependable, efficient power conversion.
